Platewheel

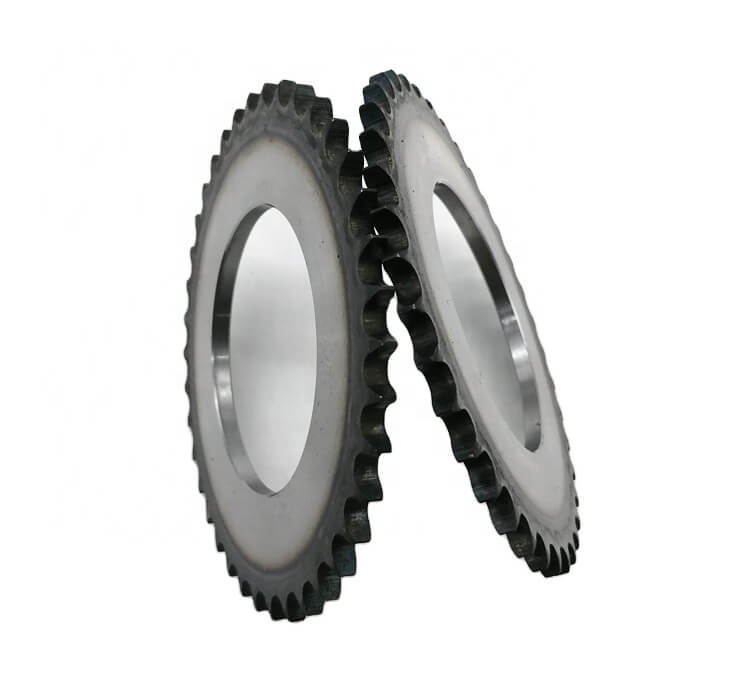

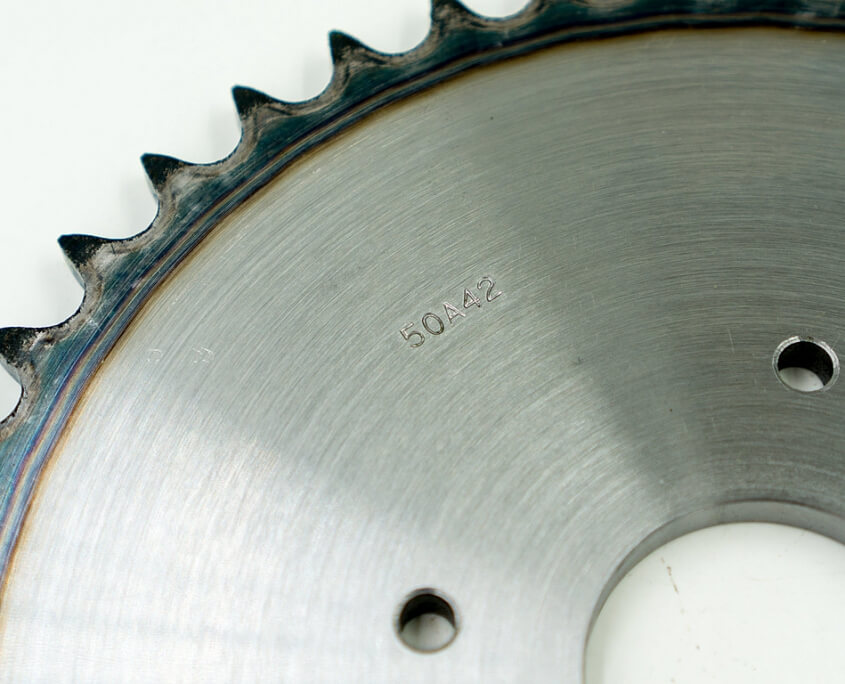

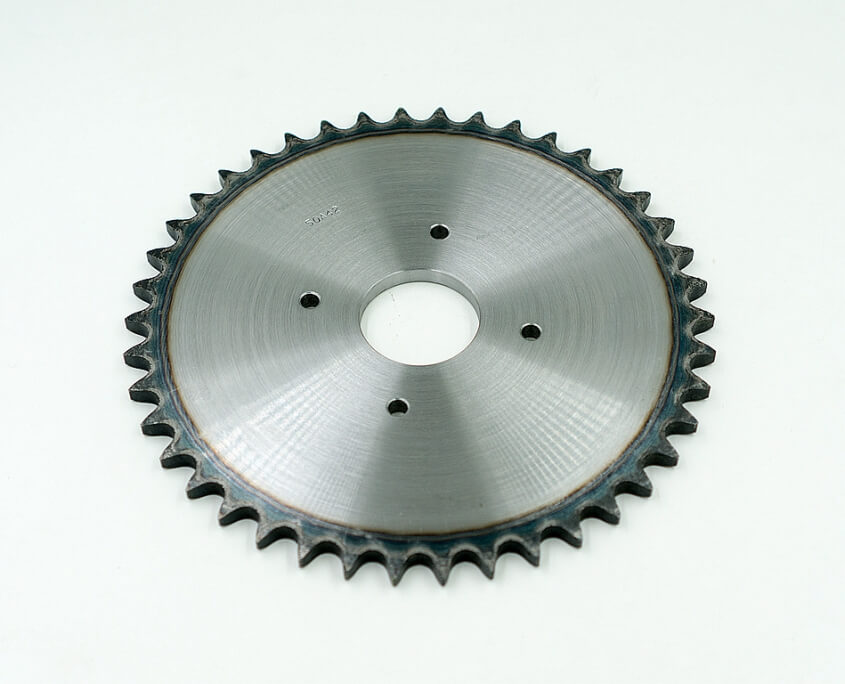

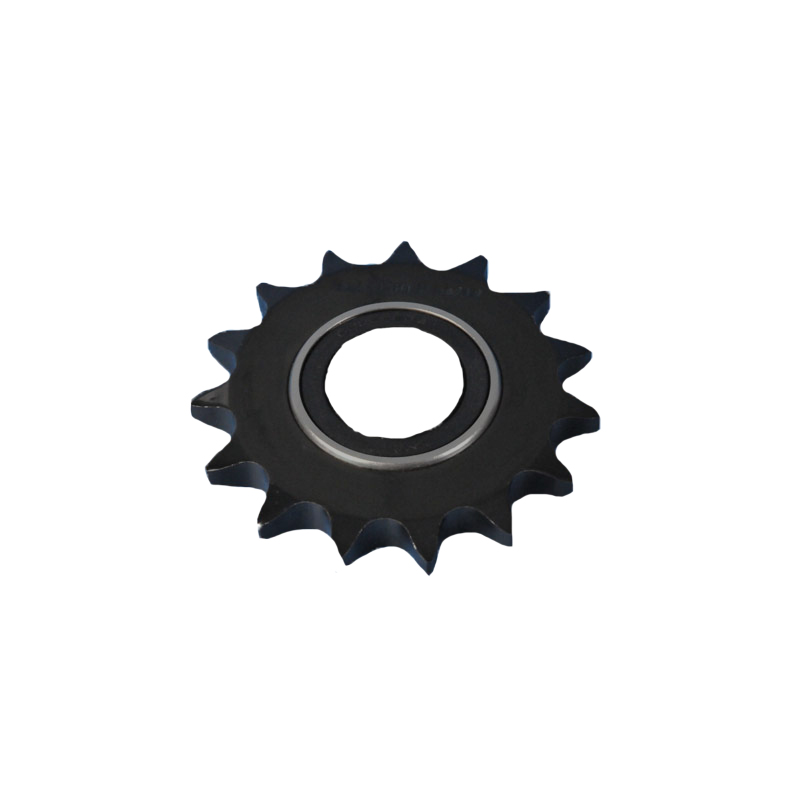

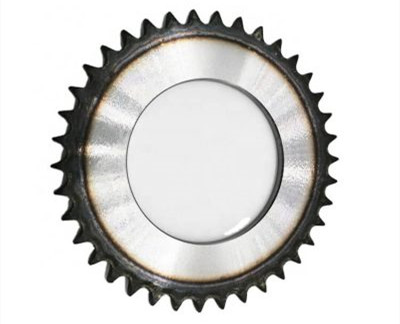

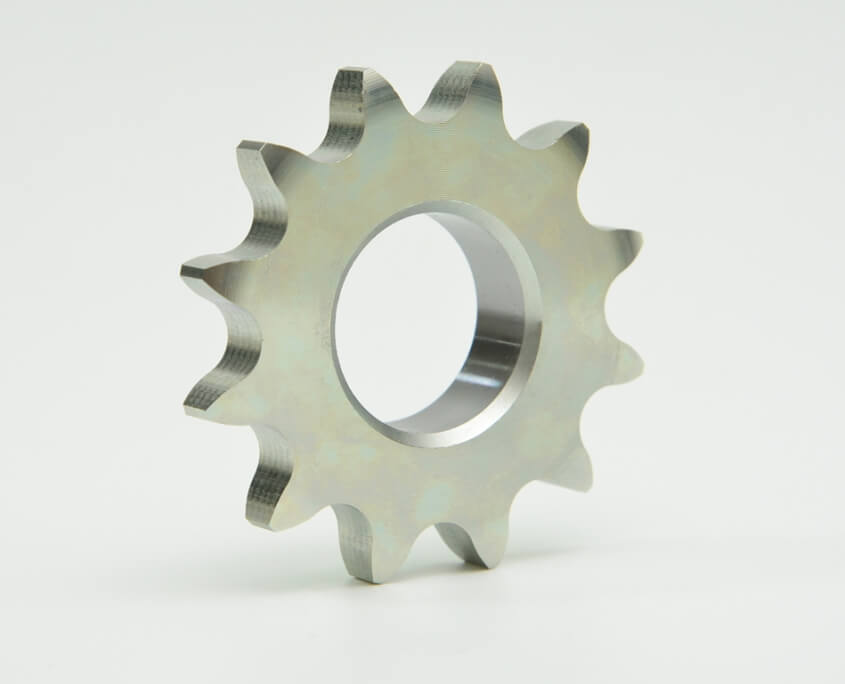

Platewheels are a type of sprocket that have no hub diameter and often referred to as hubless sprockets .which is a part of a rotating machine that relies on teeth or cogs to transmit torque. Platewheels generally work way is same with V belt pulley in Power Transmission systems.A simplex platewheel is used with a simplex roller chain and can be used for many applications.

  • Production processing: Forging→Machining→Hobbing→Teeth Heating→Treated on Quenching→Surface Treatment/Rust-Proof Treatment→Quality Inspection→Packing→Shipping

  • Material: C45, Q235B, Q355B, 304SS, 40Cr, 20 CrMnTi, 42CrMo or As Your Requirement
  • Surface Treatment: Teeth hardness, Black Oxide finished, Zinc Plate, Power coating, Nitriding or As Per Your Request

  • Hardness: Optional for HB/HRC

  • Standard: European Standard, American Standard, Martin Standard

Sprockets size
ANSI: 25/35/41/40/50/60/80/100/120/140/160/180/200/240

DIN/ISO:
04C/06C/085/08A/10A/12A/16A/20A/24A/28A/32A/36A/40A/48A

DIN/ISO:
04B/05B/06B/08B/10B/12B/16B/20B/24B/28B/32B/36B/40B/48B

Our advantage:

  • OEM accepted
  • Reasonable price & fast delivery time
  • Quality assurance
