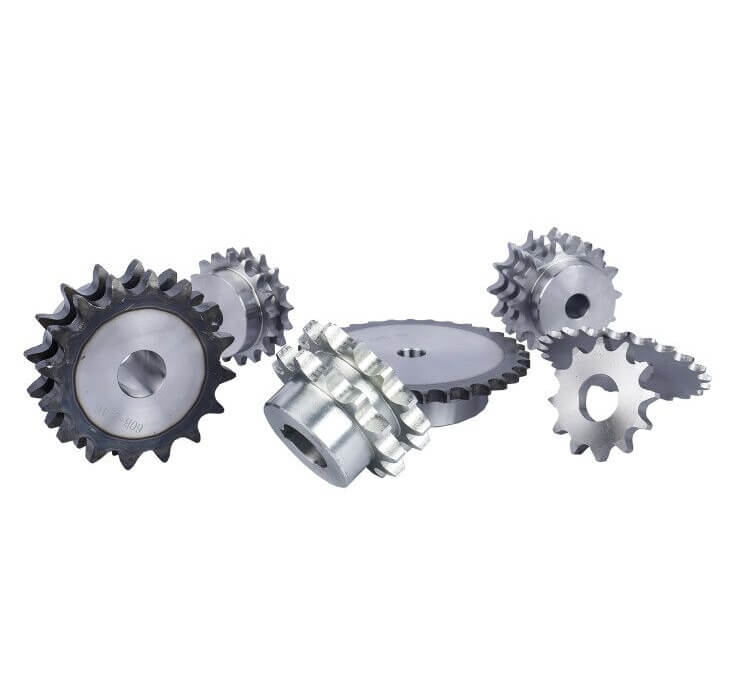

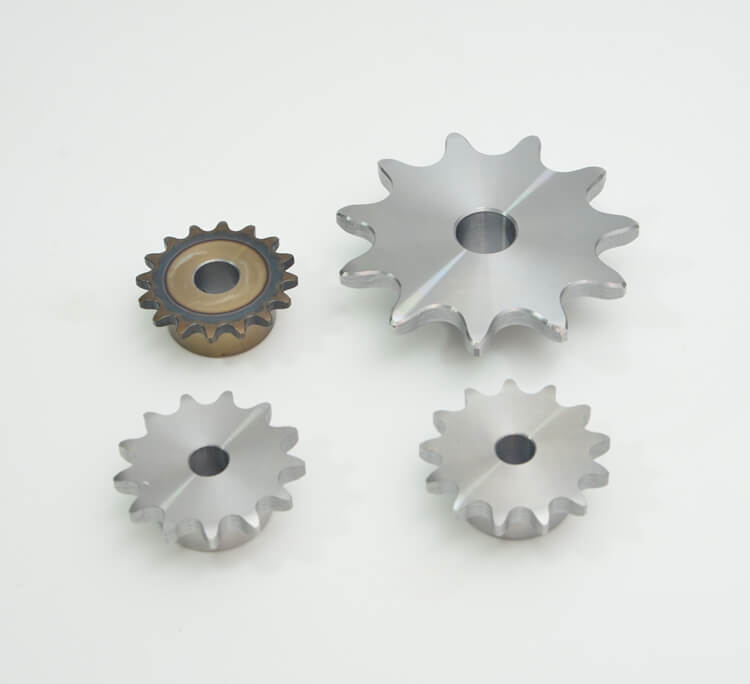

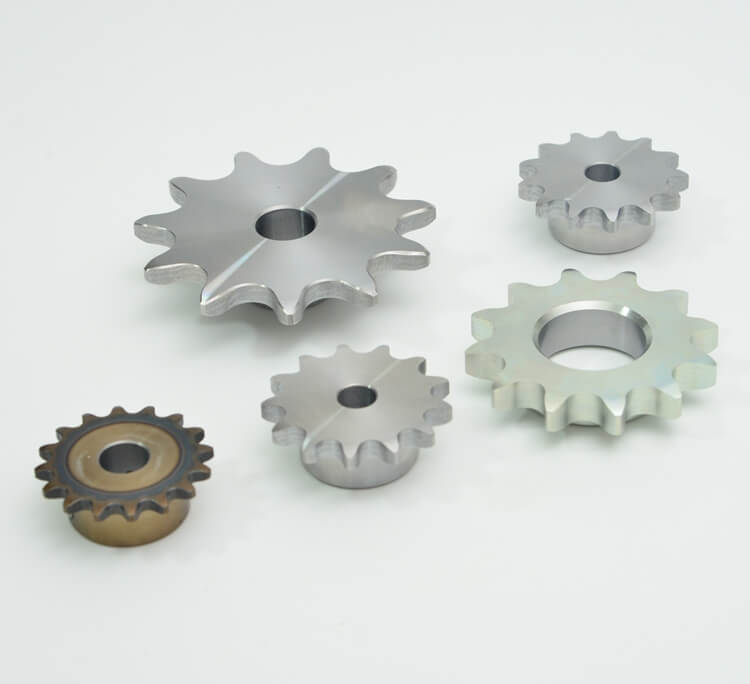

Standard Bore Sprockets

Sprockets, Sprocket Gears, Steel Sprockets, Roller Sprockets

A sprocket is a simple mechanical wheel with cog-type buckle teeth, which is used to mesh with a block with an accurate pitch on a link or cable. A solid or spoked gear that meshes with a (roller) chain to pass movement.A sprocket is different from a gear because it never meshes directly with another sprocket.They need to be used with a specific chain.So correct chain for sprocket will ensures good drive performance, and decreases maintenance.

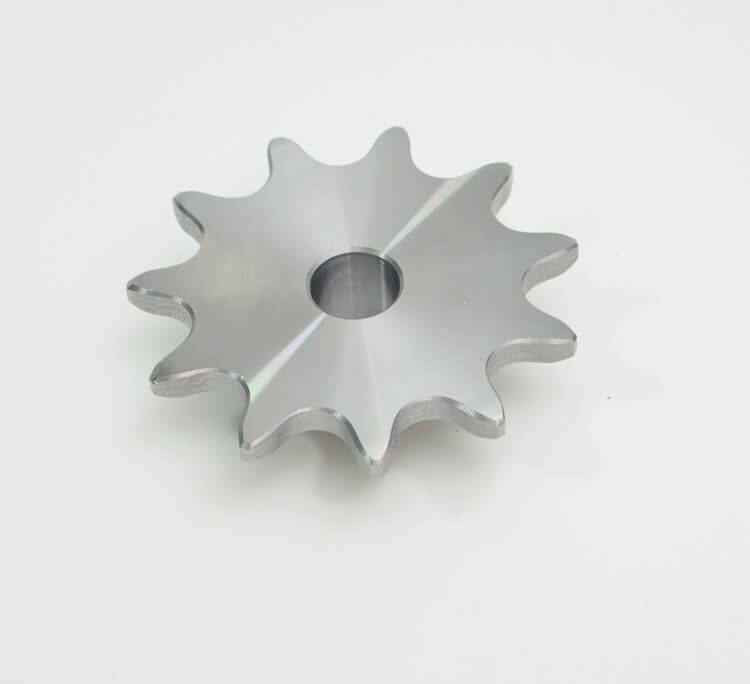

  • Type A sprockets : Plate (without Hub)

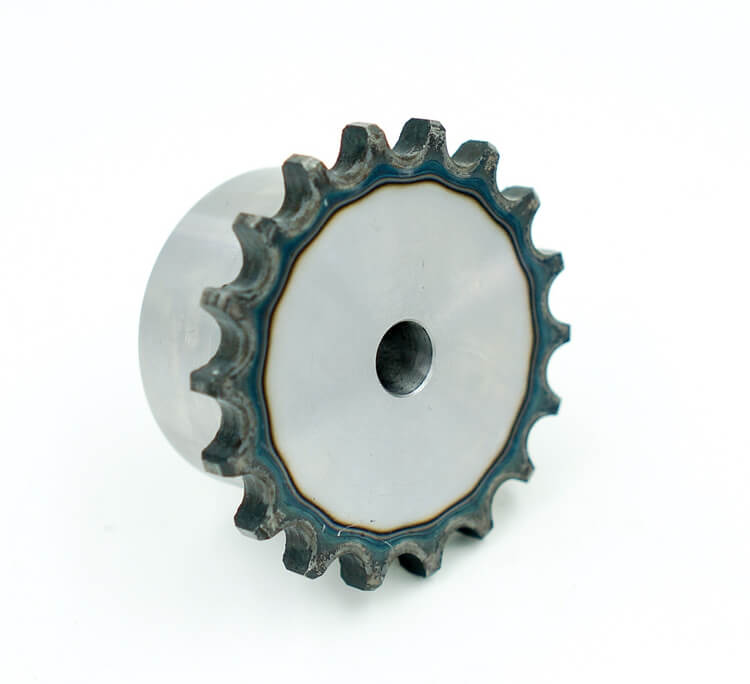

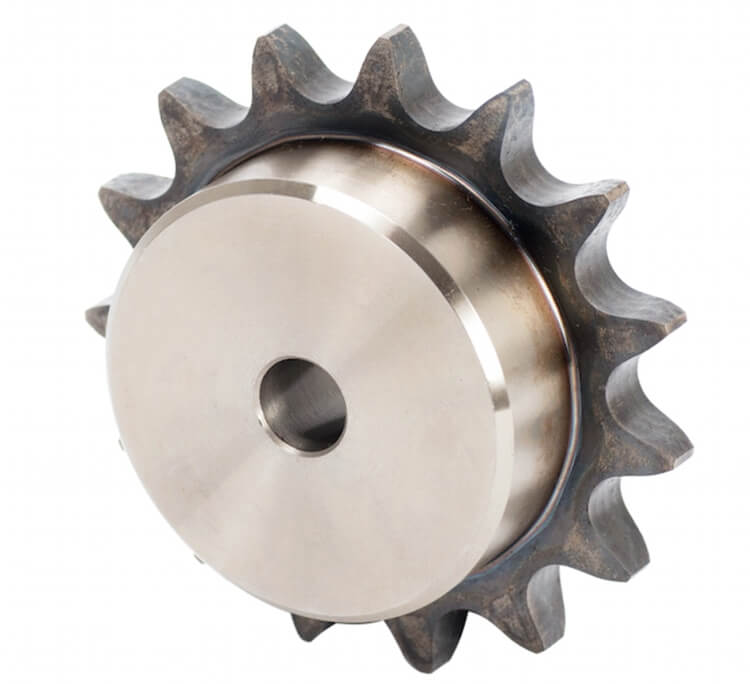

  • Type B sprockets: One side with hub
  • Type C sprockets: Double side with hub
  • Finished bore sprockets: With the inner hole ,keyway and screw

Sprockets size
ANSI: 25/35/41/40/50/60/80/100/120/140/160/180/200/240

DIN/ISO:
04C/06C/085/08A/10A/12A/16A/20A/24A/28A/32A/36A/40A/48A

DIN/ISO:
04B/05B/06B/08B/10B/12B/16B/20B/24B/28B/32B/36B/40B/48B

Our advantage:

  • OEM accepted
  • Reasonable price & fast delivery time
  • Quality assurance
Contact us for a free quote
